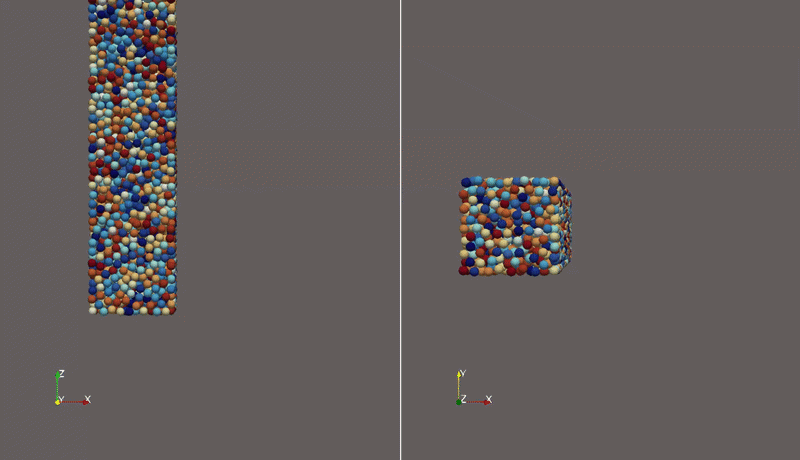

Project Granular flow

#-------------------------------------------------------------------------------
#Librairies
#-------------------------------------------------------------------------------

from yade import pack, plot, export
import numpy as np
import matplotlib.pyplot as plt
import os
import shutil
import time
import math
import random
import pickle
from pathlib import Path

#-------------------------------------------------------------------------------
#Functions
#-------------------------------------------------------------------------------

def mk_new_dir(foldername):
    '''
    Create a new folder (erase the preexisting, if it exists).
    '''
    if Path(foldername).exists():
        shutil.rmtree(foldername)
    os.mkdir(foldername)

#---------------------------------------

def report_material(reportname, L_materials):
    '''
    Write in the report the materials randomly generated
    '''
    # open the report
    simulation_report = open(reportname, 'a')
    # write an introduction
    simulation_report.write('List of the materials used:\n')
    # prepare the list
    L_young = []
    L_frictionAngle = []
    # iterate on the materials
    for material_i in L_materials:
        # prepare the sentence
        sentence_i = material_i.label + ': young = ' +str(round(material_i.young/1e6, 0)) +\
                                        ' MPa, poisson = ' +str(round(material_i.poisson, 2)) +\
                                        ', friction angle = ' +str(round(material_i.frictionAngle/math.pi*180, 0)) +\
                                        '°, density = ' +str(material_i.density) + ' kg/m3\n'
        # save
        L_young.append(material_i.young/1e6)
        L_frictionAngle.append(material_i.frictionAngle/math.pi*180)
        # write
        simulation_report.write(sentence_i)
    # add a skipped line
    simulation_report.write('\n')
    # close the report
    simulation_report.close()
    # plot
    fig, (ax1, ax2) = plt.subplots(1,2,figsize=(16,9))
    ax1.hist(L_young)
    ax1.set_xlabel('Young modulus (MPa)')
    ax2.hist(L_frictionAngle)
    ax2.set_xlabel('Friction angle (°)')
    fig.savefig('plot/'+O.tags['id']+'_distribution_properties.png')
    plt.close()

#---------------------------------------

def report_stat_material(reportname, L_p_materials):
    '''
    Write in the report the distribution of the materials assignement
    '''
    # open the report
    simulation_report = open(reportname, 'a')
    # write an introduction
    simulation_report.write('Distribution of the materials assigned:\n')
    # prepare the sentence
    sentence = ''
    # iterate on the materials
    for material_id in range(len(L_p_materials)):
        # prepare the sentence
        sentence = sentence + 'mat'+str(material_id+1) +' ('+str(round(L_p_materials[material_id]*100,1))+'%) '
    # write and add a skipped line
    simulation_report.write(sentence + '\n\n')
    # close the report
    simulation_report.close()

    # plot the distribution
    fig, ax1 = plt.subplots(1,1,figsize=(16,9))
    ax1.plot(L_p_materials, 'k')
    fig.savefig('plot/'+O.tags['id']+'_distribution_materials.png')
    plt.close()

#---------------------------------------

def report_end_step(reportname, stepname):
    '''
    Write in the report the information of the finishing step
    '''
    global tic
    tac = time.perf_counter()
    hours = (tac-tic)//(60*60)
    minutes = (tac-tic -hours*60*60)//(60)
    seconds = int(tac-tic -hours*60*60 -minutes*60)
    tic = tac

    # flag if the clumps are already generated
    flag_clump = False
    for b in O.bodies:
        if not flag_clump and b.isClump:
            flag_clump = True

    # write
    simulation_report = open(reportname, 'a')
    simulation_report.write(stepname+" : "+str(hours)+" hours "+str(minutes)+" minutes "+str(seconds)+" seconds\n")
    simulation_report.write(str(O.iter-iter_0)+' Iterations\n')
    if flag_clump:
        simulation_report.write(str(count_grains())+' / '+str(n_grains*4)+' grains\n\n')
    else :
        simulation_report.write(str(count_grains())+' / '+str(n_grains)+' grains\n\n')
    simulation_report.close()
    print(stepname+" : "+str(hours)+" hours "+str(minutes)+" minutes "+str(seconds)+" seconds\n")

#-------------------------------------------------------------------------------
#User
#-------------------------------------------------------------------------------

# consider n random materials for the artificial particle
n_mat_part = 100

# number of grains in the simulation
n_grains = 3535

# number of steps in the initialization (size increase)
n_steps_ic = 200

# automatically determine the time step from its critial value
#factor_dt_crit_ic = 0.5 # during ic
#factor_dt_crit = 0.25 # during main simulation

# dt settings used by each analyst were set in the range of 10e-6 (s) to 10e-4 (s).
# dt within the range of 0.01 to 1.0 times of dtcr
# dt cr = math.sqrt(M/Kn)

#-------------------------------------------------------------------------------
# Report and vtk
#-------------------------------------------------------------------------------

# generate the report
simulation_report_name = 'report/'+O.tags['d.id']+'_report.txt'
# from now, it can be used to save informations

# prepare the .vtk export
vtkExporter = export.VTKExporter('vtk/config')

#-------------------------------------------------------------------------------
#Initialisation
#-------------------------------------------------------------------------------

# clock to show performances
tic = time.perf_counter()
tic_0 = tic

# plan simulation
mk_new_dir('plot')
mk_new_dir('vtk')
mk_new_dir('report')

# define wall material
O.materials.append(FrictMat(young=80e6,
                            poisson=0.25,
                            frictionAngle=radians(27.2),
                            density=2650))

# create box
O.bodies.append(aabbWalls([Vector3(-100e-3, -50e-3,  10e-3),
                           Vector3(   0e-3,  50e-3, 400e-3)], thickness=0., oversizeFactor=1))
# a list of 6 boxes Bodies enclosing the packing, in the order minX, maxX, minY, maxY, minZ, maxZ

# create a box in the flow direction
O.bodies.append(box(center=(2.5e-3, 0, 10e-3), extents=(2.5e-3, 50e-3, 10e-3), fixed=True))

# create the infinite base plate
O.bodies.append(wall(position=Vector3(0, 0, 0), axis=2))

# generate n_mat_part random material
for i_mat_part in range(n_mat_part):
    # fixed value
    poisson_i = 0.37
    density_i = 1111 # should be corrected considering the overlap of the sphere
    # random sort (use range of 2*standard deviation to get 95% of the population)
    frictionAngle_i = radians(random.uniform(35.5-2*3.83, 35.5+2*3.83))
    shear_i = random.uniform(560-2*158, 560+2*158)*1e6
    young_i = 2*shear_i*(1+poisson_i)
    # save material
    label_i = 'mat'+str(i_mat_part+1)
    O.materials.append(FrictMat(young=young_i, poisson=poisson_i, frictionAngle=frictionAngle_i, density=density_i, label=label_i))
    # save the materials in the report
report_material(simulation_report_name, list(O.materials)[1:])

# generate macro grains
L_r = []
L_p_mat = np.zeros(n_mat_part)
# the idea is in the initialization to use macro spheres before applying the artificial shape (clump of 4 spheres)
for i in range(n_grains):
    # definition of the radius
    radius = (math.sqrt(6)+4)/4 *3.101e-3
    L_r.append(radius)
    # definition of the position
    center_x = random.uniform(-100e-3 +radius/n_steps_ic, 0 -radius/n_steps_ic)
    center_y = random.uniform(-50e-3 +radius/n_steps_ic, 50e-3 -radius/n_steps_ic)
    center_z = random.uniform(10e-3 +radius/n_steps_ic, 400e-3 -radius/n_steps_ic)
    # determination of the material
    mat_id = random.randint(1, n_mat_part)
    # save for stats
    L_p_mat[mat_id-1] = L_p_mat[mat_id-1] + 1/n_grains
    # generation of the particle
    O.bodies.append(sphere(center=[center_x, center_y, center_z], radius=radius/n_steps_ic, material='mat'+str(mat_id)))
# write the stat of the material assignement
report_stat_material(simulation_report_name, L_p_mat)

#-------------------------------------------------------------------------------
#Size increase algorithm
#-------------------------------------------------------------------------------

def count_grains():
    '''
    Count the number of grains in the simulation.
    '''
    counter_grains = 0
    for b in O.bodies :
        if isinstance(b.shape, Sphere):
            counter_grains = counter_grains + 1
    return counter_grains

#---------------------------------------

def grain_in_domain():
    '''
    Delete grains if they are lower than the plate or upper than the box.
    '''
    #detect grain outside the box
    L_id_to_delete = []
    for b in O.bodies :
        if isinstance(b.shape, Sphere):
            # limit x, y, z
            if  b.state.pos[0] < -100e-3 or 0 < b.state.pos[0] or\
                b.state.pos[1] < -50e-3 or 50e-3 < b.state.pos[1] or\
                b.state.pos[2] < 10e-3 or 400e-3 < b.state.pos[2] :
                L_id_to_delete.append(b.id)
    if L_id_to_delete != []:
        #delete grain detected
        for id in L_id_to_delete:
            O.bodies.erase(id)
        #print and report
        simulation_report = open(simulation_report_name, 'a')
        simulation_report.write(str(len(L_id_to_delete))+" grains erased (outside of the box)\n")
        simulation_report.close()
        print("\n"+str(len(L_id_to_delete))+" grains erased (outside of the box) -> "+\
              str(count_grains())+" grains in the domain\n")

#---------------------------------------

def checkUnbalanced_ir_ic():
    '''
    Increase particle radius until a steady-state is found.
    '''
    # the rest will be run only if unbalanced is < .1 (stabilized packing)
    # Compute the ratio of mean summary force on bodies and mean force magnitude on interactions.
    if unbalancedForce() > .1:
        return
    # increase the radius of particles
    if int(O.tags['Step ic']) < n_steps_ic :
        print('IC step '+O.tags['Step ic']+'/'+str(n_steps_ic)+' done')
        O.tags['Step ic'] = str(int(O.tags['Step ic'])+1)
        i_L_r = 0
        for b in O.bodies :
            if isinstance(b.shape, Sphere):
                growParticle(b.id, int(O.tags['Step ic'])/n_steps_ic*L_r[i_L_r]/b.shape.radius)
                i_L_r = i_L_r + 1
        # update the dt as the radii change
        #O.dt = factor_dt_crit_ic * PWaveTimeStep()
        return
    print('IC step '+O.tags['Step ic']+'/'+str(n_steps_ic)+' done\n')

    # report
    report_end_step(simulation_report_name, 'IC Generated')
    print('application of the gravity, can be long...\n')

    # print configuration
    vtkExporter.exportSpheres(what={mat_id:'b.mat.id'})

    # next time, do not call this function anymore, but the next one instead
    global iter_0
    iter_0 = O.iter
    checker.command = 'checkUnbalanced_gravity_ic()'
    checker.iterPeriod = 500

    # prepare next phase
    global L_cog_z, L_coordination, L_unbalanced, L_Ec
    L_cog_z = []
    L_coordination = []
    L_unbalanced = []
    L_Ec = []
    # apply gravity
    Newton.gravity = (0, 0, -9.81)
    # write report
    simulation_report = open(simulation_report_name, 'a')
    simulation_report.write('Application of the gravity\n')
    simulation_report.close()

#---------------------------------------

# prepare the initialization
O.tags['Step ic'] = '1'
iter_0 = 0

# write report
simulation_report = open(simulation_report_name, 'a')
simulation_report.write('Apply a size increase algorithm\n')
simulation_report.close()

# yade algorithm
O.engines = [
        PyRunner(command='grain_in_domain()', iterPeriod = 1000),
        ForceResetter(),
        # sphere, wall
        InsertionSortCollider([Bo1_Sphere_Aabb(), Bo1_Box_Aabb(), Bo1_Wall_Aabb()]),
        InteractionLoop(
                # Ig : compute contact point
                # Ip : compute parameters needed
                # Law : compute contact law with parameters from Ip
                [Ig2_Sphere_Sphere_ScGeom(), Ig2_Box_Sphere_ScGeom(), Ig2_Wall_Sphere_ScGeom()],
                [Ip2_FrictMat_FrictMat_MindlinPhys(en=0.809)],
                [Law2_ScGeom_MindlinPhys_Mindlin()]
        ),
        NewtonIntegrator(gravity=(0, 0, 0), damping=0.1, label = 'Newton'),
        PyRunner(command='checkUnbalanced_ir_ic()', iterPeriod = 200, label='checker')
]
# time step
#O.dt = factor_dt_crit_ic * PWaveTimeStep()
O.dt = 5.e-07

#-------------------------------------------------------------------------------
#Application of the gravity
#-------------------------------------------------------------------------------

def compute_center_of_gravity():
    '''
    Compute the center of gravity of all the grains.
    '''
    Center = np.array([0,0,0])
    Mass = 0
    for b in O.bodies:
        if isinstance(b.shape, Sphere):
            Center = Center + b.state.mass*np.array(b.state.pos)
            Mass = Mass + b.state.mass
    return Center/Mass

#---------------------------------------

def plot_trackers_ic(L_cog_z, L_coordination, L_unbalanced, L_Ec, n_window):
    '''
    Plot the evolution of the various trackers.
    '''
    fig, ((ax1,ax2), (ax3, ax4)) = plt.subplots(2, 2, figsize=(16,9))

    # coordinate z of the gravity center
    ax1.plot(L_cog_z, color='k')
    if len(L_cog_z)>=n_window:
        ax1.plot(list(range(len(L_cog_z)-n_window, len(L_cog_z))), L_cog_z[-n_window:], color='r')
        ax1.text((len(L_cog_z)-1)*0.5, (np.max(L_cog_z)+np.min(L_cog_z))/2,\
            'max-min='+str(max(L_cog_z[-n_window:])-min(L_cog_z[-n_window:])), color='r')
    ax1.set_ylabel('Coordinate z of the gravity center')

    # coordination number
    ax2.plot(L_coordination, color='k')
    if len(L_coordination)>=n_window:
        ax2.plot(list(range(len(L_coordination)-n_window, len(L_coordination))), L_coordination[-n_window:], color='r')
        ax2.text((len(L_coordination)-1)*0.5, (np.max(L_coordination)+np.min(L_coordination))/2,\
            'max-min='+str(max(L_coordination[-n_window:])-min(L_coordination[-n_window:])), color='r')
        ax2.text((len(L_coordination)-1)*0.5, (np.max(L_coordination)+3*np.min(L_coordination))/4,\
            'mean='+str(np.mean(L_coordination[-n_window:])), color='r')
    ax2.set_ylabel('Coordination number')

    # unbalanced force ratio
    ax3.plot(L_unbalanced, color='k')
    if len(L_unbalanced)>=n_window:
        ax3.plot(list(range(len(L_unbalanced)-n_window, len(L_unbalanced))), L_unbalanced[-n_window:], color='r')
        ax3.text((len(L_unbalanced)-1)*0.5, (np.max(L_unbalanced)+np.min(L_unbalanced))/2,\
            'max-min='+str(max(L_unbalanced[-n_window:])-min(L_unbalanced[-n_window:])), color='r')
        ax3.text((len(L_unbalanced)-1)*0.5, (np.max(L_unbalanced)+3*np.min(L_unbalanced))/4,\
            'mean='+str(np.mean(L_unbalanced[-n_window:])), color='r')
    ax3.set_ylabel('Unbalanced ratio')

    # unbalanced force ratio
    ax4.plot(L_Ec, color='k')
    if len(L_Ec)>=n_window:
        ax4.plot(list(range(len(L_Ec)-n_window, len(L_Ec))), L_Ec[-n_window:], color='r')
        ax4.text((len(L_Ec)-1)*0.5, (np.max(L_Ec)+np.min(L_Ec))/2,\
            'max-min='+str(max(L_Ec[-n_window:])-min(L_Ec[-n_window:])), color='r')
        ax4.text((len(L_Ec)-1)*0.5, (np.max(L_Ec)+3*np.min(L_Ec))/4,\
            'mean='+str(np.mean(L_Ec[-n_window:])), color='r')
    ax4.set_ylabel('Kinetic energy')

    # close
    fig.tight_layout()
    fig.savefig('plot/'+O.tags['id']+'_ic_trackers.png')
    plt.close()

#---------------------------------------

def checkUnbalanced_gravity_ic():
    '''
    Apply the gravity to settle the particles.
    '''
    global iter_0
    global L_cog_z, L_coordination, L_unbalanced, L_Ec
    # define the criteria for steady-state
    n_window = 20
    delta_cog_z = 0.00005

    # read the center of gravity of the granular sample
    cog = compute_center_of_gravity()
    # save trackers
    L_cog_z.append(cog[2]) # coordinate z of the center of gravity
    L_coordination.append(avgNumInteractions()) # coordination number
    L_unbalanced.append(unbalancedForce()) # unbalanced force ratio
    L_Ec.append(kineticEnergy()) # mean kinetic energy
    # plot trackers
    plot_trackers_ic(L_cog_z, L_coordination, L_unbalanced, L_Ec, n_window)

    # repeat at least a certain amount of times
    if O.iter-iter_0 < checker.iterPeriod*n_window:
        return
    # check that the center of gravity has not moved
    if max(L_cog_z[-n_window:])-min(L_cog_z[-n_window:]) > delta_cog_z:
        return

    # report
    report_end_step(simulation_report_name, 'Gravity Applied')
    # print configuration
    vtkExporter.exportSpheres(what={mat_id:'b.mat.id'})

    # next time, do not call this function anymore, but the next one instead
    if count_grains() < n_grains:
        # Need to reinsert grains
        reinsert_grains_ic(n_grains-count_grains())
        # refind an equilibrium
        L_cog_z = []
        L_coordination = []
        L_unbalanced = []
        L_Ec = []
        iter_0 = O.iter
        checker.iterPeriod = 500
    else :
        # generate the clump
        generateClump()
        # print configuration
        vtkExporter.exportSpheres(what={mat_id:'b.mat.id'})
        # refind an equilibrium
        L_cog_z = []
        L_coordination = []
        L_unbalanced = []
        L_Ec = []
        iter_0 = O.iter
        checker.iterPeriod = 500
        checker.command = 'checkUnbalanced_clump_ic()'

#---------------------------------------

def reinsert_grains_ic(n_grains_reinsert):
    '''
    Reinsert grains that have been deleted.
    '''
    # write report
    print('Reinsert grains')
    simulation_report = open(simulation_report_name, 'a')
    simulation_report.write('Reinsert grains\n')
    simulation_report.close()

    # definition of the domain (based on the presence of grains)
    min_center_z = 0
    for b in O.bodies:
        if isinstance(b.shape, Sphere):
            # compare the z coordinate with the domain
            if b.state.pos[2] + b.shape.radius > min_center_z:
                min_center_z = b.state.pos[2] + b.shape.radius

    # determination of the seed
    n_seed_dim = int(100e-3/(((math.sqrt(6)+4)/4*3.101e-3)*2*2))
    dim_seed = (100e-3)/n_seed_dim

    # generation of the grains
    for i_seed in range(n_grains_reinsert):
        # determine the z of the seed and adapt i_seed
        z_seed_i = i_seed//(n_seed_dim*n_seed_dim)
        i_seed = i_seed-z_seed_i*(n_seed_dim*n_seed_dim)
        # determine the x and y of the seed
        x_seed_i = i_seed%n_seed_dim
        y_seed_i = i_seed//n_seed_dim

        # definition of the radius
        radius = (math.sqrt(6)+4)/4 *3.101e-3
        # definition of the position
        center_x = random.uniform(-100e-3 +x_seed_i*dim_seed +radius, -100e-3 +(x_seed_i+1)*dim_seed -radius)
        center_y = random.uniform(-50e-3 +y_seed_i*dim_seed +radius, -50e-3 +(y_seed_i+1)*dim_seed -radius)
        center_z = min_center_z +z_seed_i*2*radius +radius

        # determination of the material
        mat_id = random.randint(1, n_mat_part)
        # generation of the particle
        O.bodies.append(sphere(center=[center_x, center_y, center_z], radius=radius, material='mat'+str(mat_id)))

    # recompute the distribution of the material
    L_p_mat = np.zeros(n_mat_part)
    for b in O.bodies:
        if isinstance(b.shape, Sphere):
            L_p_mat[b.mat.id-1] = L_p_mat[b.mat.id-1] + 1/n_grains
    # write in the report
    report_stat_material(simulation_report_name, L_p_mat)

    # report
    simulation_report = open(simulation_report_name, 'a')
    simulation_report.write('Application of the gravity\n')
    simulation_report.close()

#-------------------------------------------------------------------------------
#Generation of the clump
#-------------------------------------------------------------------------------

def generateClump():
    '''
    Generate the clumps from the preliminary grains.
    '''
    # iteration on the grain
    n_grains0 = count_grains()
    counter = 0
    for b in list(O.bodies)[:n_grains0+8]:
        if isinstance(b.shape, Sphere):
            counter = counter + 1
            # read material
            label_mat = b.mat.label
            # definition of the radius
            radius = 3.101e-3
            # define the elementary spheres
            center_1 = np.array([radius/2, math.sqrt(3)*radius/6, math.sqrt(6)*radius/3])
            center_2 = np.array([       0,                     0,                     0])
            center_3 = np.array([  radius,                     0,                     0])
            center_4 = np.array([radius/2, math.sqrt(3)*radius/2,                     0])
            # compute the center of the clum
            center_clump = (center_1+center_2+center_3+center_4)/4
            # recompute the coordinate of the elementary spheres relative to this center
            center_1 = center_1 - center_clump
            center_2 = center_2 - center_clump
            center_3 = center_3 - center_clump
            center_4 = center_4 - center_clump
            # generate random rotations d'Euler
            phi = random.random()*2*math.pi
            psi = random.random()*2*math.pi
            theta = random.random()*2*math.pi
            # compute the rotation matrice
            M_rot = np.array([[math.cos(psi)*math.cos(phi)-math.sin(psi)*math.cos(theta)*math.sin(phi), -math.cos(psi)*math.sin(phi)-math.sin(psi)*math.cos(theta)*math.cos(phi),  math.sin(psi)*math.sin(theta)],
                              [math.sin(psi)*math.cos(phi)+math.cos(psi)*math.cos(theta)*math.sin(phi), -math.sin(psi)*math.sin(phi)+math.cos(psi)*math.cos(theta)*math.cos(phi), -math.cos(psi)*math.sin(theta)],
                              [                                          math.sin(theta)*math.sin(phi),                                            math.sin(theta)*math.cos(phi),                math.cos(theta)]])
            # rotate the spheres
            center_1 = np.linalg.solve(M_rot, center_1)
            center_2 = np.linalg.solve(M_rot, center_2)
            center_3 = np.linalg.solve(M_rot, center_3)
            center_4 = np.linalg.solve(M_rot, center_4)
            # translate the spheres
            center_1 = center_1 + np.array(b.state.pos)
            center_2 = center_2 + np.array(b.state.pos)
            center_3 = center_3 + np.array(b.state.pos)
            center_4 = center_4 + np.array(b.state.pos)
            # generate the clump
            O.bodies.appendClumped([sphere(center=center_1, radius=radius, material=label_mat),
                                    sphere(center=center_2, radius=radius, material=label_mat),
                                    sphere(center=center_3, radius=radius, material=label_mat),
                                    sphere(center=center_4, radius=radius, material=label_mat)])

    # erase the grains
    for b in list(O.bodies)[:n_grains0+8]:
        if isinstance(b.shape, Sphere):
            O.bodies.erase(b.id)
    # erase the existing interactions
    O.interactions.clear()

    # update the time step as the particles change
    #O.dt = factor_dt_crit_ic * PWaveTimeStep()
    #O.dt = 1e-5
    O.dt = 5e-6

    # report and user
    simulation_report = open(simulation_report_name, 'a')
    simulation_report.write('Generation of the clump\n\n')
    simulation_report.write('Application of the gravity\n')
    simulation_report.close()

    print('Generation of the clump and application of the gravity, can be long...\n')

#---------------------------------------

def checkUnbalanced_clump_ic():
    '''
    Apply the gravity to settle the cumpled particles.
    '''
    global iter_0
    global L_cog_z, L_coordination, L_unbalanced, L_Ec
    # define the criteria for steady-state
    n_window = 20
    delta_cog_z = 0.00002

    # read the center of gravity of the granular sample
    cog = compute_center_of_gravity()
    # save trackers
    L_cog_z.append(cog[2]) # coordinate z of the center of gravity
    L_coordination.append(avgNumInteractions()) # coordination number
    L_unbalanced.append(unbalancedForce()) # unbalanced force ratio
    L_Ec.append(kineticEnergy()) # mean kinetic energy
    # plot trackers
    plot_trackers_ic(L_cog_z, L_coordination, L_unbalanced, L_Ec, n_window)

    # repeat at least a certain amount of times
    if O.iter-iter_0 < checker.iterPeriod*n_window:
        return
    # check that the center of gravity has not moved
    if max(L_cog_z[-n_window:])-min(L_cog_z[-n_window:]) > delta_cog_z:
        return

    # report
    report_end_step(simulation_report_name, 'Gravity Applied')
    # print configuration
    vtkExporter.exportSpheres(what={mat_id:'b.mat.id'})

    # write data for input

    # report and user
    simulation_report = open(simulation_report_name, 'a')
    simulation_report.write('The initial condition is reached, the sample is ready for the granular flow\n\n')
    simulation_report.close()
    print('The initial condition is reached, the sample is ready for the granular flow\n')

    # export the data
    exportData(True)

    # prepare the next step
    iter_0 = O.iter
    checker.iterPeriod = 5000

    checker.command = 'checkUnbalanced_granularFlow()'
    # reduce the time step for the main simulation
    #O.dt = factor_dt_crit * PWaveTimeStep()
    # reduce strongly the damping
    Newton.damping = 0.00
    # cancel the grain_in_domain() verification
    O.engines = O.engines[1:]
    # add the control of the trap
    O.bodies[1].state.vel = (0, 0, 6.45e-2)

#-------------------------------------------------------------------------------
#Opening of the trap and granular flow
#-------------------------------------------------------------------------------

def checkUnbalanced_granularFlow():
    '''
    Look for the steady-state and save data of the simulation
    '''
    # save config
    vtkExporter.exportSpheres(what={mat_id:'b.mat.id'})

    # plot XY view
    plot_XY_view()

    # add data
    addPlotData()

    # look for the steady state
    n_window = 5
    # minimum size of the data
    if len(plot.data['m_pos_x']) < n_window:
        return

    # miminum displacement on x
    if plot.data['m_pos_x'][-1] < -0.025:
        return

    # small variation in the displacement on x
    if max(plot.data['m_pos_x'][-n_window:])-min(plot.data['m_pos_x'][-n_window:]) > 0.00002:
        return

    # check ratio of the force
    if unbalancedForce() > 1e-6:
        return

    # check the kinetic energy
    if kineticEnergy() > 0.0003:
        return

    # prepare the next step
    stopLoad()

#---------------------------------------

def addPlotData():
    """
    Save data in plot.
    """
    # find the extrema and the mean position
    mean_center = np.array([0, 0, 0])
    Mass = 0
    y_min = 0
    y_max = 0
    x_max = 0
    for b in O.bodies:
        if isinstance(b.shape, Sphere):
            # compute the mean
            mean_center = mean_center + b.state.mass*np.array(b.state.pos)
            Mass = Mass + b.state.mass
            # compute extrema
            if x_max < b.state.pos[0]:
                x_max = b.state.pos[0]
            if y_max < b.state.pos[1]:
                y_max = b.state.pos[1]
            if b.state.pos[1] < y_min :
                y_min = b.state.pos[1]
    # compute the mean position
    mean_center = mean_center/Mass
    # add data
    plot.addData(i=O.iter-iter_0, coordination=avgNumInteractions(), unbalanced=unbalancedForce(), Ec=kineticEnergy(),\
                 m_pos_x=mean_center[0], m_pos_y=mean_center[1], m_pos_z=mean_center[2],\
                 x_max=x_max, y_min=y_min, y_max=y_max,\
                )
    # plot the data
    saveData()

#---------------------------------------

def saveData():
    """
    Save data in .txt file.
    """
    # save data
    plot.saveDataTxt('plot/data_'+O.tags['d.id']+'.txt')
    # prepare plot
    L_ite = []
    L_cog_x = []
    L_max_x = []
    L_max_y = []
    L_min_y = []
    L_coordination = []
    L_unbalanced = []
    L_Ec = []

    # read data
    file = 'plot/data_'+O.tags['d.id']+'.txt'
    data = np.genfromtxt(file, skip_header=1)
    file_read = open(file, 'r')
    lines = file_read.readlines()
    file_read.close()
    if len(lines) >= 3:
        for i in range(len(data)):
            L_Ec.append(data[i][0])
            L_coordination.append(data[i][1])
            L_ite.append(data[i][2])
            L_cog_x.append(data[i][3])
            L_unbalanced.append(data[i][6])
            L_max_x.append(data[i][7])
            L_max_y.append(data[i][8])
            L_min_y.append(data[i][9])

        # plot
        n_window = 5
        fig, ((ax1, ax2, ax3), (ax4, ax5, ax6)) = plt.subplots(2,3, figsize=(20,10),num=1)

        # coordinate x of the gravity center
        ax1.plot(L_cog_x, color='k')
        if len(L_cog_x)>=n_window:
            ax1.plot(list(range(len(L_cog_x)-n_window, len(L_cog_x))), L_cog_x[-n_window:], color='r')
            ax1.text((len(L_cog_x)-1)*0.5, (np.max(L_cog_x)+np.min(L_cog_x))/2,\
                'max-min='+str(max(L_cog_x[-n_window:])-min(L_cog_x[-n_window:])), color='r')
        ax1.set_ylabel('Coordinate x of the gravity center')

        # coordinate x of the maximum
        ax2.plot(L_max_x, color='k')
        if len(L_max_x)>=n_window:
            ax2.plot(list(range(len(L_max_x)-n_window, len(L_max_x))), L_max_x[-n_window:], color='r')
            ax2.text((len(L_max_x)-1)*0.5, (np.max(L_max_x)+np.min(L_max_x))/2,\
                'max-min='+str(max(L_max_x[-n_window:])-min(L_max_x[-n_window:])), color='r')
        ax2.set_ylabel('Boundary x of the grains')

        # coordinates x of the extrema
        ax3.plot(L_max_y, color='k')
        ax3.plot(L_min_y, color='k')
        if len(L_max_y)>=n_window:
            ax3.plot(list(range(len(L_max_y)-n_window, len(L_max_y))), L_max_y[-n_window:], color='r')
            ax3.text((len(L_max_y)-1)*0.5, (np.max(L_max_y)+np.min(L_max_y))/2,\
                'max-min='+str(max(L_max_y[-n_window:])-min(L_max_y[-n_window:])), color='r')
            ax3.plot(list(range(len(L_min_y)-n_window, len(L_min_y))), L_min_y[-n_window:], color='r')
            ax3.text((len(L_min_y)-1)*0.5, (np.max(L_min_y)+np.min(L_min_y))/2,\
                'max-min='+str(max(L_min_y[-n_window:])-min(L_min_y[-n_window:])), color='r')
        ax3.set_ylabel('Boundaries y of the grains')

        # coordination number
        ax4.plot(L_coordination, color='k')
        if len(L_coordination)>=n_window:
            ax4.plot(list(range(len(L_coordination)-n_window, len(L_coordination))), L_coordination[-n_window:], color='r')
            ax4.text((len(L_coordination)-1)*0.5, (np.max(L_coordination)+np.min(L_coordination))/2,\
                'max-min='+str(max(L_coordination[-n_window:])-min(L_coordination[-n_window:])), color='r')
            ax4.text((len(L_coordination)-1)*0.5, (np.max(L_coordination)+3*np.min(L_coordination))/4,\
                'mean='+str(np.mean(L_coordination[-n_window:])), color='r')
        ax4.set_ylabel('Coordination number')

        # unbalanced force ratio
        ax5.plot(L_unbalanced, color='k')
        if len(L_unbalanced)>=n_window:
            ax5.plot(list(range(len(L_unbalanced)-n_window, len(L_unbalanced))), L_unbalanced[-n_window:], color='r')
            ax5.text((len(L_unbalanced)-1)*0.5, (np.max(L_unbalanced)+np.min(L_unbalanced))/2,\
                'max-min='+str(max(L_unbalanced[-n_window:])-min(L_unbalanced[-n_window:])), color='r')
            ax5.text((len(L_unbalanced)-1)*0.5, (np.max(L_unbalanced)+3*np.min(L_unbalanced))/4,\
                'mean='+str(np.mean(L_unbalanced[-n_window:])), color='r')
        ax5.set_ylabel('Unbalanced ratio')

        # unbalanced force ratio
        ax6.plot(L_Ec, color='k')
        if len(L_Ec)>=n_window:
            ax6.plot(list(range(len(L_Ec)-n_window, len(L_Ec))), L_Ec[-n_window:], color='r')
            ax6.text((len(L_Ec)-1)*0.5, (np.max(L_Ec)+np.min(L_Ec))/2,\
                'max-min='+str(max(L_Ec[-n_window:])-min(L_Ec[-n_window:])), color='r')
            ax6.text((len(L_Ec)-1)*0.5, (np.max(L_Ec)+3*np.min(L_Ec))/4,\
                'mean='+str(np.mean(L_Ec[-n_window:])), color='r')
        ax6.set_ylabel('Kinetic energy')

        fig.tight_layout()
        fig.savefig('plot/'+O.tags['d.id']+'_trackers.png')
        plt.close()

#---------------------------------------

def plot_XY_view():
    '''
    Plot the XY view of the clump centers.
    '''
    # prepare the plot
    L_x_center = []
    L_y_center = []
    # iterate on the grains
    for b in O.bodies:
        if isinstance(b.shape, Clump):
            L_x_center.append(b.state.pos[0])
            L_y_center.append(b.state.pos[1])

    # plot
    fig, (ax1) = plt.subplots(1,1, figsize=(16,9),num=1)
    ax1.scatter(L_x_center, L_y_center, color='k')
    ax1.plot([0, -100e-3, -100e-3, 0, 0], [50e-3, 50e-3, -50e-3, -50e-3, 50e-3], color='gray')
    ax1.set_xlabel('Coordinate x')
    ax1.set_ylabel('Coordinate y')
    ax1.set_aspect('equal')
    fig.savefig('plot/'+O.tags['d.id']+'_XY_view.png')
    plt.close()

#---------------------------------------

def stopLoad():
    """
    Close simulation.
    """
    # write output for submission
    exportData(False)

    # close yade
    O.pause()
    # report
    report_end_step(simulation_report_name, 'Granular flow')
    # characterize the simulation
    tac = time.perf_counter()
    hours = (tac-tic_0)//(60*60)
    minutes = (tac-tic_0 -hours*60*60)//(60)
    seconds = int(tac-tic_0 -hours*60*60 -minutes*60)
    # report
    simulation_report = open(simulation_report_name, 'a')
    simulation_report.write("Simulation time : "+str(hours)+" hours "+str(minutes)+" minutes "+str(seconds)+" seconds\n\n")
    simulation_report.close()
    print("\nSimulation time : "+str(hours)+" hours "+str(minutes)+" minutes "+str(seconds)+" seconds\n")

    # save simulation
    os.mkdir('data/'+O.tags['d.id'])
    shutil.copytree('plot','data/'+O.tags['d.id']+'/plot')
    shutil.copytree('vtk','data/'+O.tags['d.id']+'/vtk')
    shutil.copytree('report', 'data/'+O.tags['d.id']+'/report')
    shutil.copy('TC105_2RRA_ASM.py','data/'+O.tags['d.id']+'/TC105_2RRA_ASM.py')

#-------------------------------------------------------------------------------
# export data for the 2RRA
#-------------------------------------------------------------------------------

def exportData(flag_start):
    '''
    Export the data required (idi, xi, yi, zi) for the 14.140 grains.
    carriage return at end of each line
    separate coordinate value with a comma
    coordinate value in single or double precision floating point
    position in millimeters
    '''
    # the name of the file depends on the start or end state
    if flag_start:
        filename = 'report/start'+O.tags['d.id']+'.dat'
    else :
        filename = 'report/end'+O.tags['d.id']+'.dat'
    # open file
    file = open(filename, 'w')

    # iterate on the grains
    id_g = 0
    for b in O.bodies:
        if isinstance(b.shape, Sphere):
            id_g = id_g + 1
            # prepare the line
            line = str(id_g)+', '+\
                   str(b.state.pos[0]*1e3)+', '+\
                   str(b.state.pos[1]*1e3)+', '+\
                   str(b.state.pos[2]*1e3)+'\r'
            # write
            file.write(line)

    # close the file
    file.close()

#-------------------------------------------------------------------------------
# start simulation
#-------------------------------------------------------------------------------

O.run()
waitIfBatch()
